Sand Management

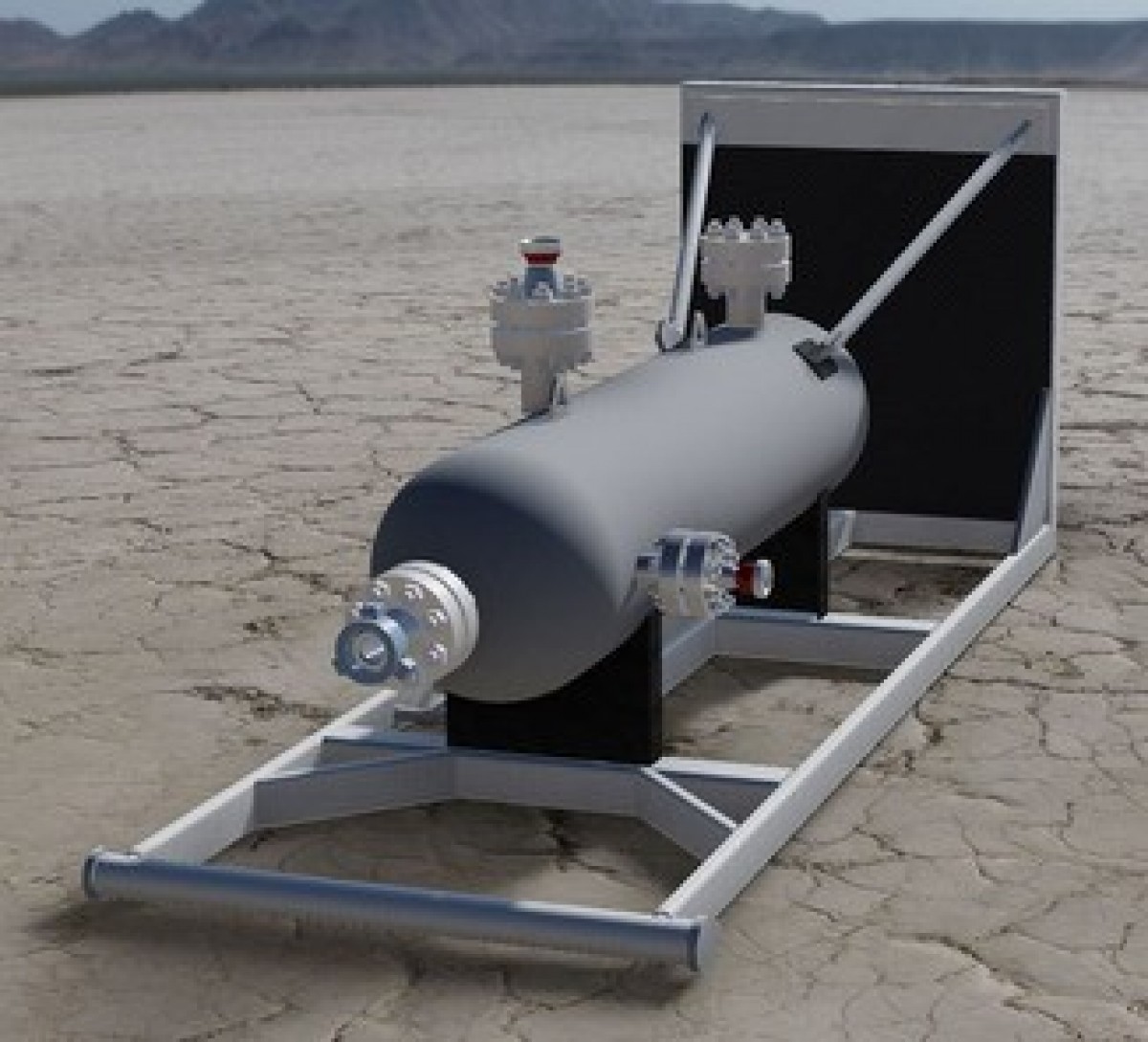

Cyclonic Sand Knockouts

Our cyclonic design takes in hydrocarbons and solids at high velocity and uses the cyclone’s momentum to separate them efficiently — keeping more sand away from your downstream equipment.

Available in two pipe configurations:

  • 2” 1502 inlet and outlet
  • 3” 1502 inlet and outlet
Trusted equipment. Everything we rent is inspected, pressure-tested and recertified in our own shop, so it arrives ready to work — with the paperwork to show it.
Cyclonic Sand Knockouts

Specifications

PSIDescriptionShellInletSand outletWeight (lbs)Skid (W × H × L)
5,80020” × 8’8’3” 15023” 15026,7004.5’ × 4.5’ × 14’
5,00024” × 8’8’3” 15023” 2500# RF10,0005’ × 6’ × 15’
10,00024” × 8’8’3” 10M API3” 10M API14,0005’ × 6’ × 15’
5,00024” × 8’8’3” 2500# RF3” 2500# RF14,5005’ × 6’ × 15’
7,50030” × 10’8’3” 10M API3” 10M API15,5005’ × 6’ × 15’
1,44030” × 8’8’3” 15023” 15027,0005’ × 6’ × 15’
5K cyclonic sand knockout10K cyclonic sand knockout10K cyclonic block trap10K cyclonic block trap10K cyclonic sweep trap

Want to rent a cyclonic sand knockout?

Call the yard nearest your job, or send us the details and we’ll get back to you.
